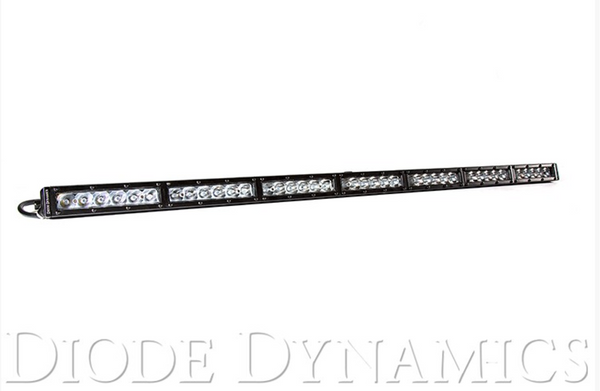

SS42 Stage Series 42" White Light Bar
- Advanced TIR (total internal reflection) optic
- Slim design, for easy mounting

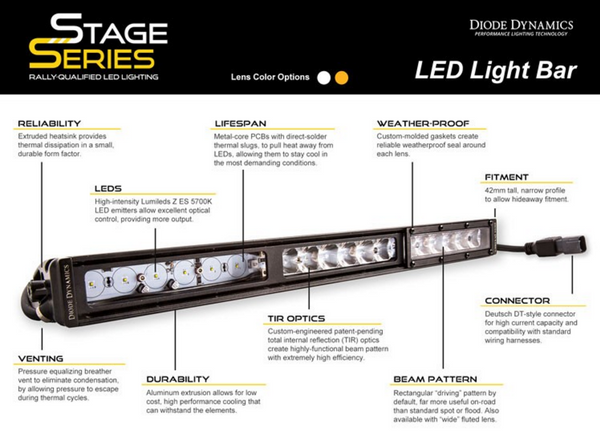

these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.

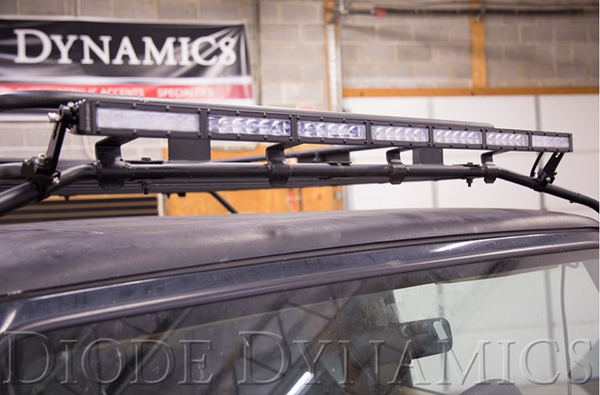

First, we started with a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42mm tall, they'll fit in many places a traditional dual-row light bar won't, while drastically cutting the total weight as well.
But the compact size doesn't mean they're short on power! Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
This TIR optic was designed with optical simulation modelling, to shape the output in a highly-functional beam pattern. Rather than a simple "spot" pattern, the Stage Series has a rectangular Driving pattern, far more useful for directing light downrange at high speeds. And instead of a standard "flood," the Wide option provides an extremely wide field of view, without wasting any light in the sky above. The Combo option combines both the Driving and Wide optics, with the Wide pattern on the outermost lenses and the Driving pattern on the inner lenses. These light bars provide light where you want it, and don't shine where you don't.
All Stage Series LED lighting products use a standard Deutsch-style connector, and come with a 1-foot pigtail, with bare leads. You can wire yourself, or select an optional wire harness.
Diode Dynamics is pleased to offer a limited 8 year warranty on all Stage Series products.
Total Power: 224 watts
Current Draw: 16 amps @ 14V
Peak Intensity: 350,000
Intensity @ 10m: 3500 lux (Driving)
Raw Output: 15,960 lumens
Measured Output: 9800 lumens
Output Color: 6000K Crisp White

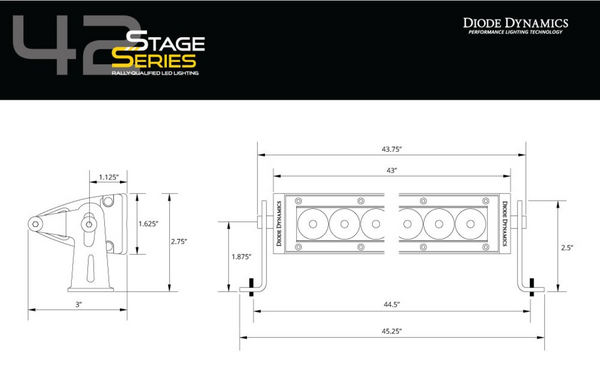

Total Dimensions: See images above.
Weight: 7.0 lbs
Connector: Deutsch DT
